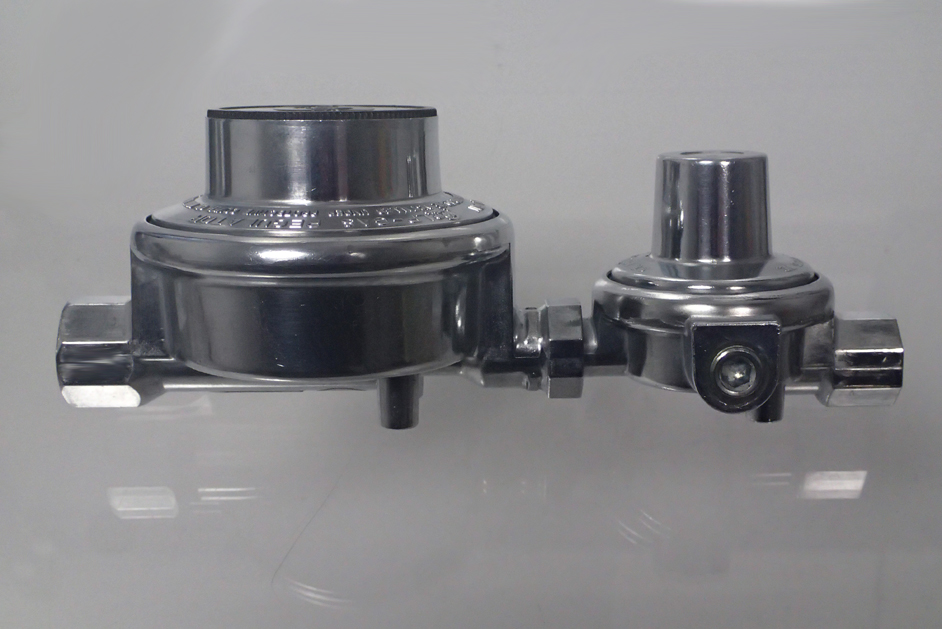

Two-Stage Regulator
Description
The new M.B. Sturgis Two Stage Regulator has surpassed all of the competition in the RV market. This regulator is the “straight-through” version of the new Auto Changeover Regulator and also has the highest flow capacity in the Class A, B & C market place. The high flow rate and ability to maintian 9″ W.C. pressure at extremely high flow rates ensures that all the appliances on the coach can easily function an run a standby generator without losing gas pressure.
The Two Stage Regulator performs the same pressure reducing function of a single stage low pressure regulator, except that it does so in two stages. The first stage reduces cylinder pressure to 10PSI and sends it to the second stage where it is reduced to 11″ W.C. Because the pressure is reduced in two stages, and because the second stage receives a consistent inlet pressure, the regulator provides a very even, efficient flow of gas.
*IF YOU’RE ON MBSTURGIS.COM AND NEED TO SEE PRICING AND READY TO ORDER, CLICK THE GET MORE INFORMATION & BUY BOX.
Specifications
180° Two-Stage Regulator Consisting of a 10PSI Regulator on the 1st Stage and a 11″ W.C. Regulator on the Second Stage. 1/4″ Female Flare Inlet X 3/8″ FNPT Outlet.
OUTLET PRESSURE – 11″ W.C. PSIG MAX.
FLOW CAPACITY – 400,000 BTU P/HR
TEMPERATURE RANGE – -20ºF to 120ºF (-40ºC to 55ºC)
CERTIFICATION – UL144 Used for LP Gas only.
