RV Type 1 X 1/4″ Inv. Flare Pigtail
Description
Used to connect a dual LP Cylinder system to the Two-Stage Regulator. The MB Sturgis Type 1 provides a higher rate of flow (450,000 BTU’s P/H) resulting in a decreased potential for the system to go into bypass mode and therefore shutting down the gas supply to the system.

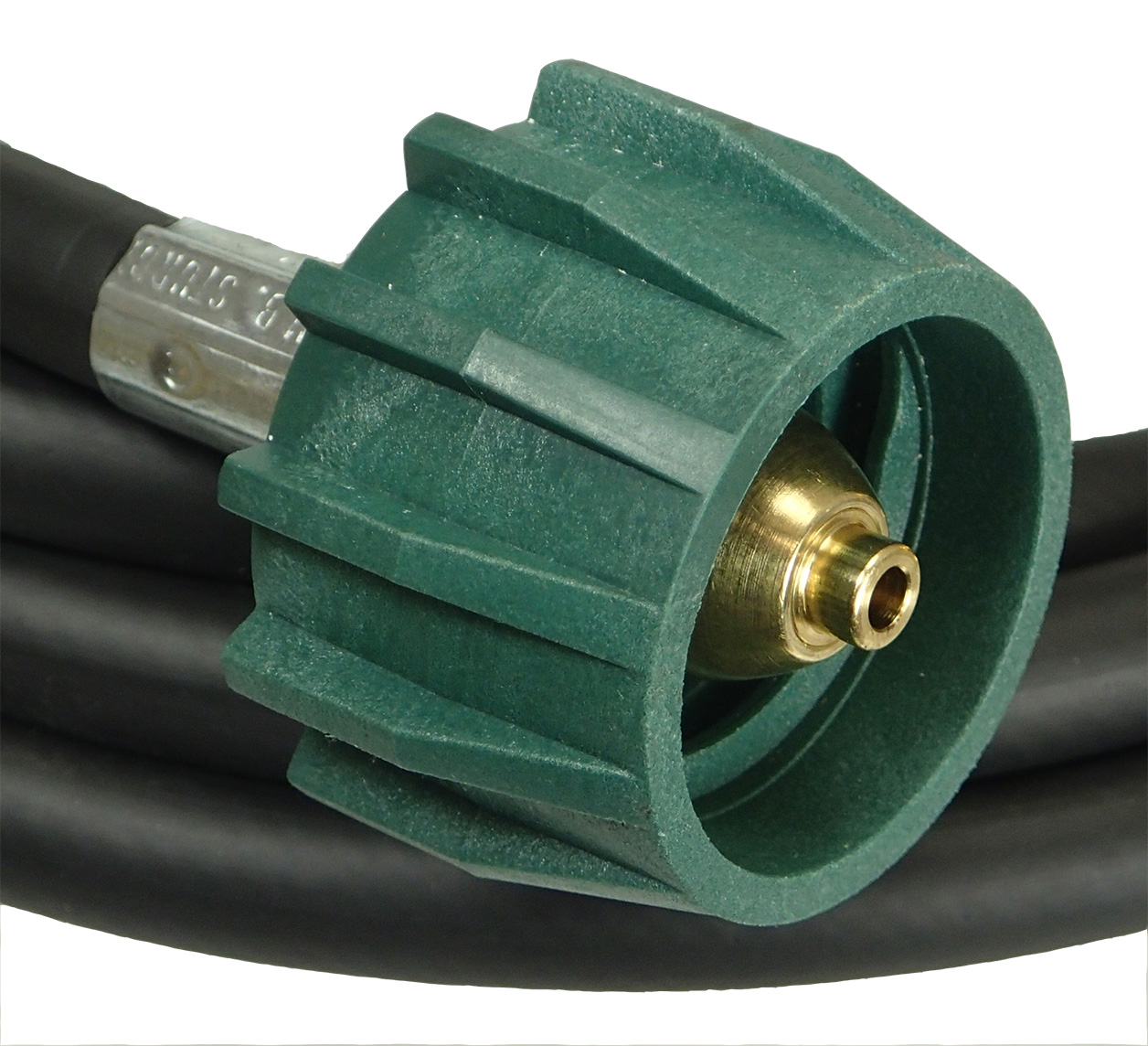

The MB Sturgis RV Type 1 (Dark Green) includes an internal back check to ensure the system does not allow a back flow gas leak.
*Standard Pigtail Length is 12″ OAL
*IF YOU’RE ON MBSTURGIS.COM AND NEED TO SEE PRICING, THE STANDARD LENGTHS WE OFFER, CLICK THE GET MORE INFORMATION & BUY BOX.
Specifications

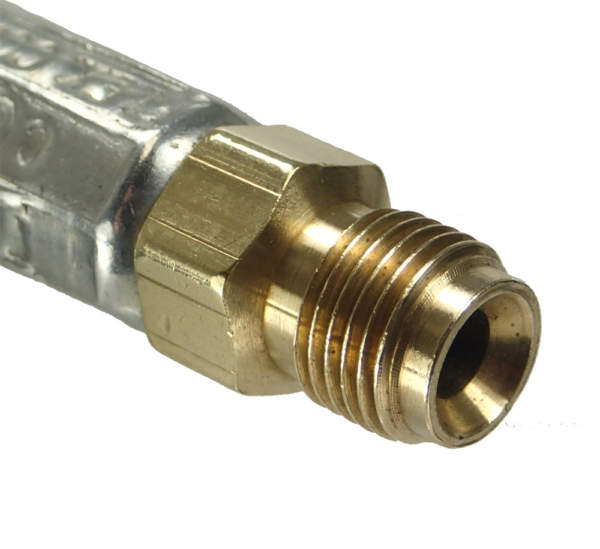

1/4″ ID Thermo Plastic Hose Assembly including a Dark Green RV Type 1 Tank Connection with internal back check and a 1/4″ Male Inverted Flare. 12″ Overall Length (Can be custom made to any length).
BENEFITS – Provides a higher flow rate to avoid going into by-pass mode, a back check to completly stop any potential back flow leakage and has a heat sensitive thermal shut-off device to shut off the gas in extreme heat situations.
MAX FLOW CAPACITY – 450,000 BTU’s P/H, TEMPERATURE RANGE – -40ºF to 140º (-40ºC to 60ºC)
CERTIFICATION – UL569 / ANSI Z21-81 Used for LP Gas Only
