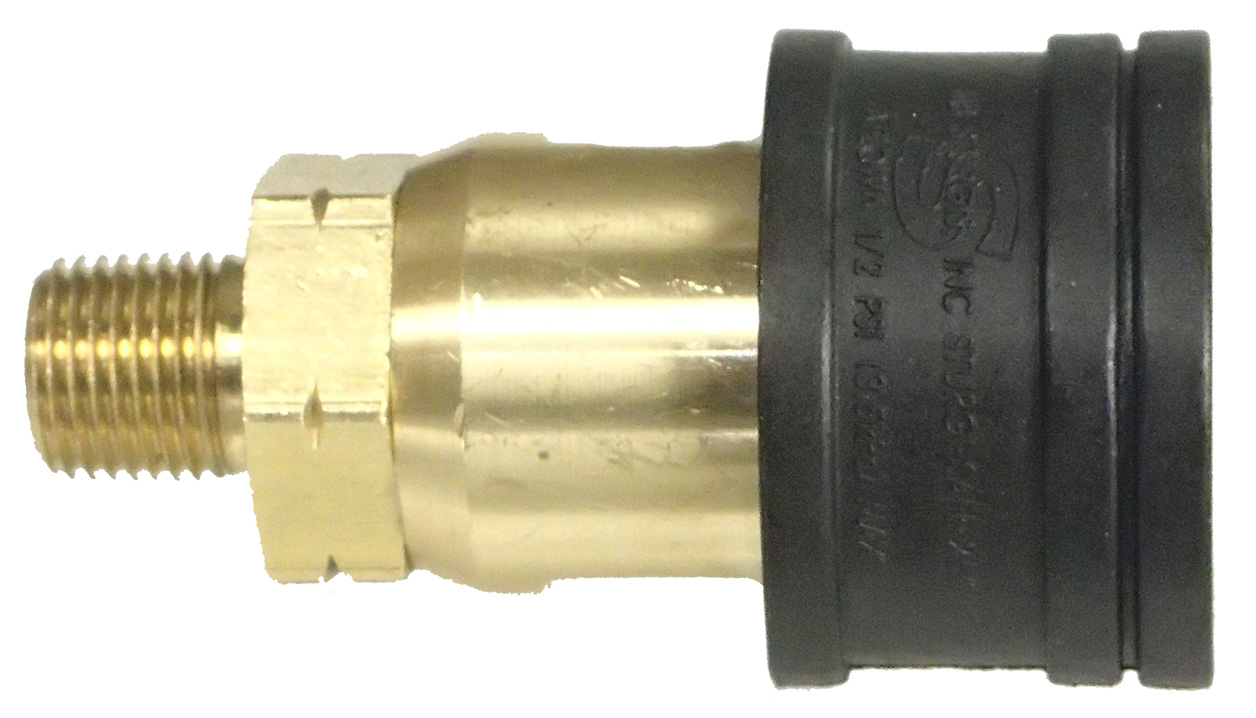

Model 250 Quick Connect X 1/8″ MNPT
Description
Commonly used to connect a low pressure regulator to a Weber Q grill that has been converted for low pressure use using our Weber Q Adapter Kit. The 1/8″ MPT end of this quick disconnect will screw directly into the outlet of the OEM provided tabletop regulator that comes standard with with the Weber Q Grill. Once the grill is converted for low pressure, the burner inlet will be a 1/4″ Male Model 250 Plug. This quick disconnect will connect the pressure regulator to the grill and allow the use of a 1# Disposable Propane Bottle or a bulk adapter hose.
Be sure to check our sizing information to ensure the correct item order.
*IF YOU’RE ON MBSTURGIS.COM AND NEED TO SEE PRICING AND READY TO ORDER CLICK THE GET MORE INFORMATION & BUY BOX.
Specifications
1/4″ Low Pressure Quick Disconnect x 1/8″ MNPT
COMPATIBLE PLUGS – MBS Part Numbers 401132 / 401148
MAX. FLOW CAPACITY – 14,000 BTU P/HR Natural Gas (40K LP) at 1/2″ PSIG Working Pressure
PRESSURE RATING – 1/2 PSIG
TEMPERATURE RANGE – -40ºF to 350ºF (-40ºC to 177ºC)
CERTIFICATION – ANSI Z21.41 (CSA) Used for LP or Natural Gas
