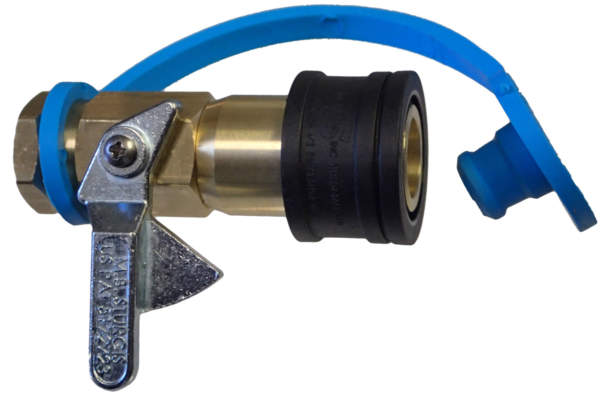

Model 250 Ball Valve Quick Connect X 1/4″ FNPT
Description
Used for connecting low pressure, low BTU outdoor cooking applinces via quick connect. Commonly used with BBQ Grills, RV’s, & Brooder Heaters.
Be sure to check our sizing information to ensure the correct item order.
*IF YOU’RE ON MBSTURGIS.COM AND NEED TO SEE PRICING AND READY TO ORDER CLICK THE GET MORE INFORMATION & BUY BOX.
Specifications
1/4″ Low Pressure Ball Valve Quick Disconnect x 1/4″ FNPT
COMPATIBLE PLUGS – MBS Part Numbers 401132 / 401148
MAX. FLOW CAPACITY – 14,000 BTU P/HR Natural Gas (40K LP) at 1/2″ PSIG Working Pressure
PRESSURE RATING – 1/2 PSIG
TEMPERATURE RANGE – -40ºF to 350ºF (-40ºC to 177ºC)
CERTIFICATION – ANSI Z21.41 (CSA) Used for LP or Natural Gas
