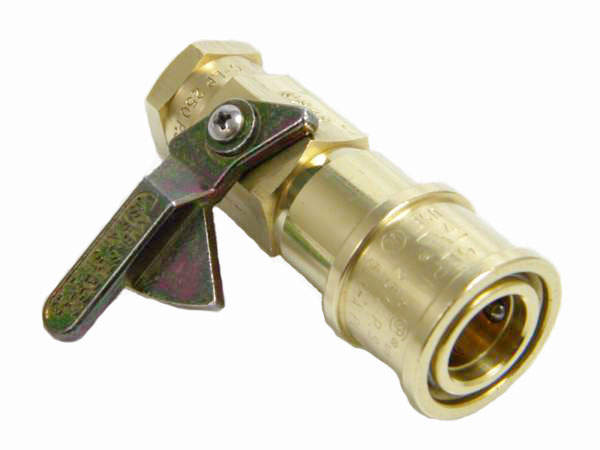

5LPN Ball Valve Quick Connect X 1/4″ FNPT
Description
Used for connecting high pressure LP gas fuel devices such as torches, weed burners, pressure cookers, etc. via intragral shut-off valve quick disconnect. Commonly used in place of a shut-off valve or in conjunction with the MB Sturgis “STURGI-STAY” to allow motorhome owners to hook up to an auxiliary propane cylinder.
Be sure to check our sizing information to ensure the correct item order.
*IF YOUR ON MBSTURGIS.COM AND NEED TO SEE PRICING AND READY TO ORDER CLICK THE GET MORE INFORMATION & BUY BOX.
Specifications
1/4″ High Pressure Integral Ball Valve Quick Disconnect x 1/4″ FNPT
COMPATIBLE QUICK DISCONNECT PLUGS – MBS Part Numbers 401111 / 401147
MAX. FLOW CAPACITY – 50,000 BTU LP Gas @ 1/2″ PSIG Working Pressure. BTU Capacity increases as input working pressure increases up to 250 PSIG
PRESSURE RATING – 250 PSIG
TEMPERATURE RANGE – -40ºF to 350ºF (-40ºC to 177ºC)
Use for LP and Natural Gas
