RV Type 1 X Inv. Flare Pigtail with Stainless Steel Overbraid
Used to connect a dual LP Cylinder system to the Two-Stage Regulator. The MB Sturgis Type 1 provides a higher rate of flow (450,000 BTU’s P/H) resulting in a decreased potential for the system to go into bypass mode therefore shutting down the gas supply to the system. Stainless Steel Overbraid provides added protection to the hose.

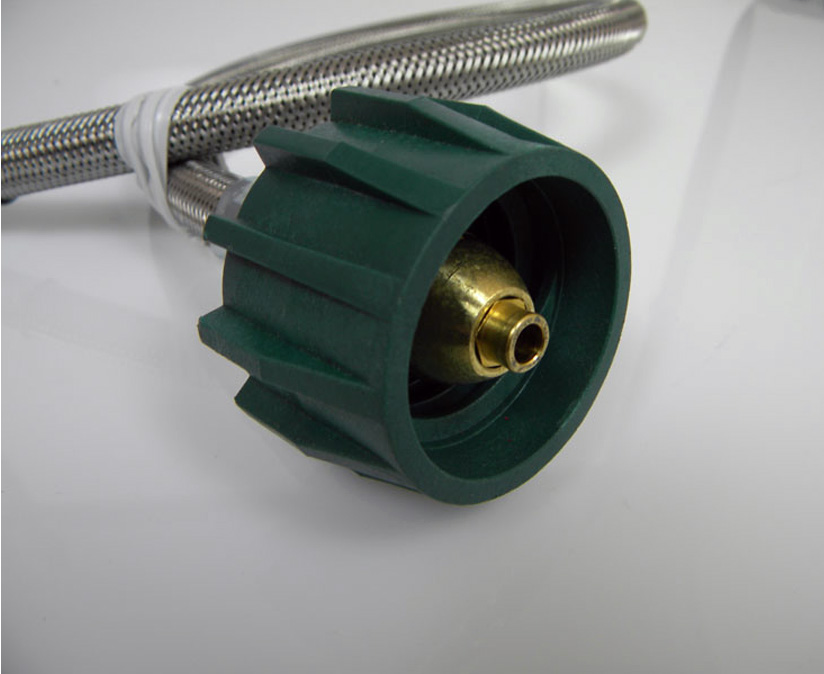

The MB Sturgis RV Type 1 (Dark Green) includes an internal back check to ensure the system does not allow a back flow gas leak.
*Standard Pigtail Length is 12″ OAL

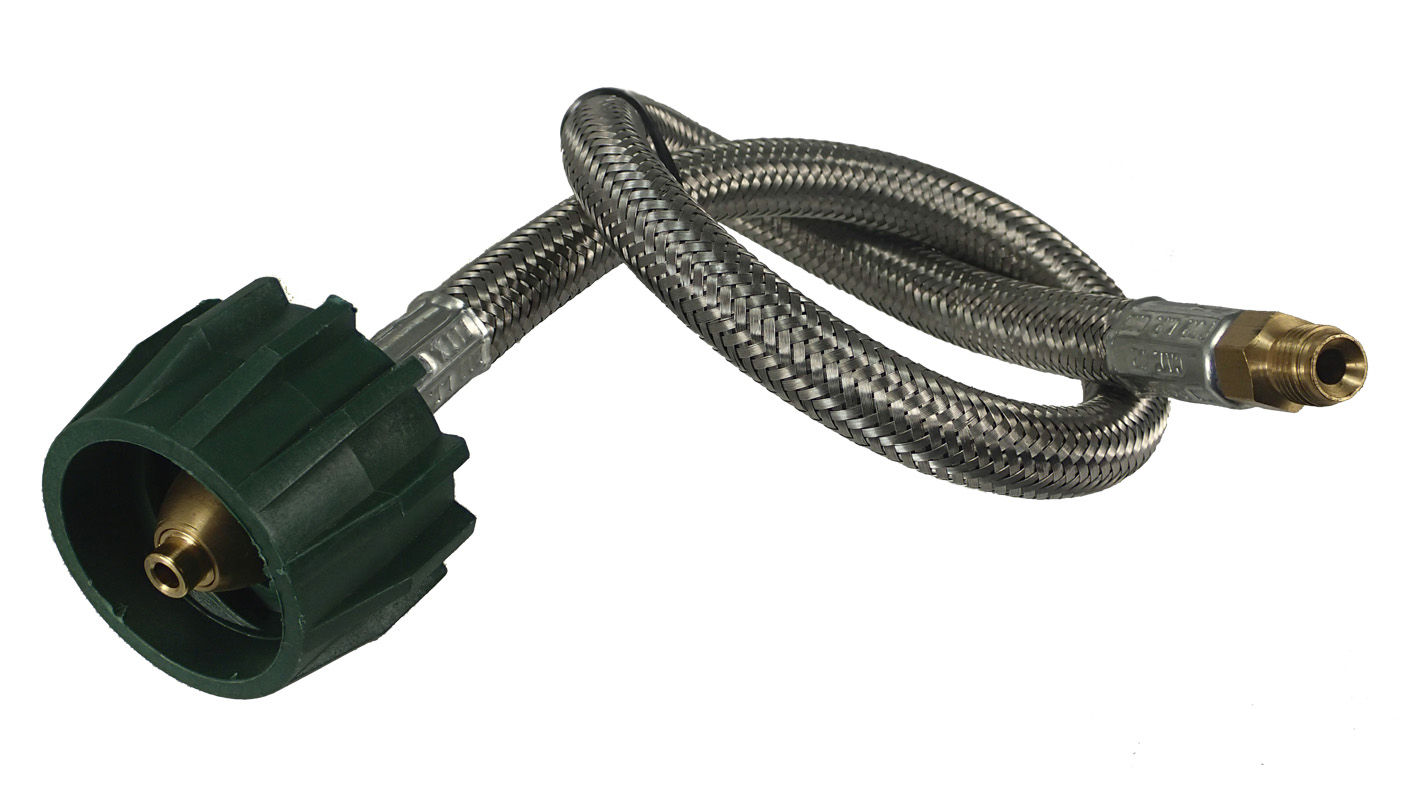

1/4″ ID Stainless Steel Overbraided Thermo Plastic Hose Assembly including a Dark Green RV Type 1 Tank Connection with internal back check and a 1/4″ Male Inverted Flare. 12″ Overall Length (Can be custom made to any length).
BENEFITS – Provides a higher flow rate to avoid going into by-pass mode, a back check to completly stop any potential back flow leakage and has a heat sensitive thermal shut-off device to shut off the gas in extreme heat situations.
MAX FLOW CAPACITY – 450,000 BTU’s P/H
TEMPERATURE RANGE – -40ºF to 140º (-40ºC to 60ºC)
CERTIFICATION – UL569 / ANSI Z21-81 Used for LP Gas Only
