Quick Disconnect Sturgi-Stay Deluxe Kit

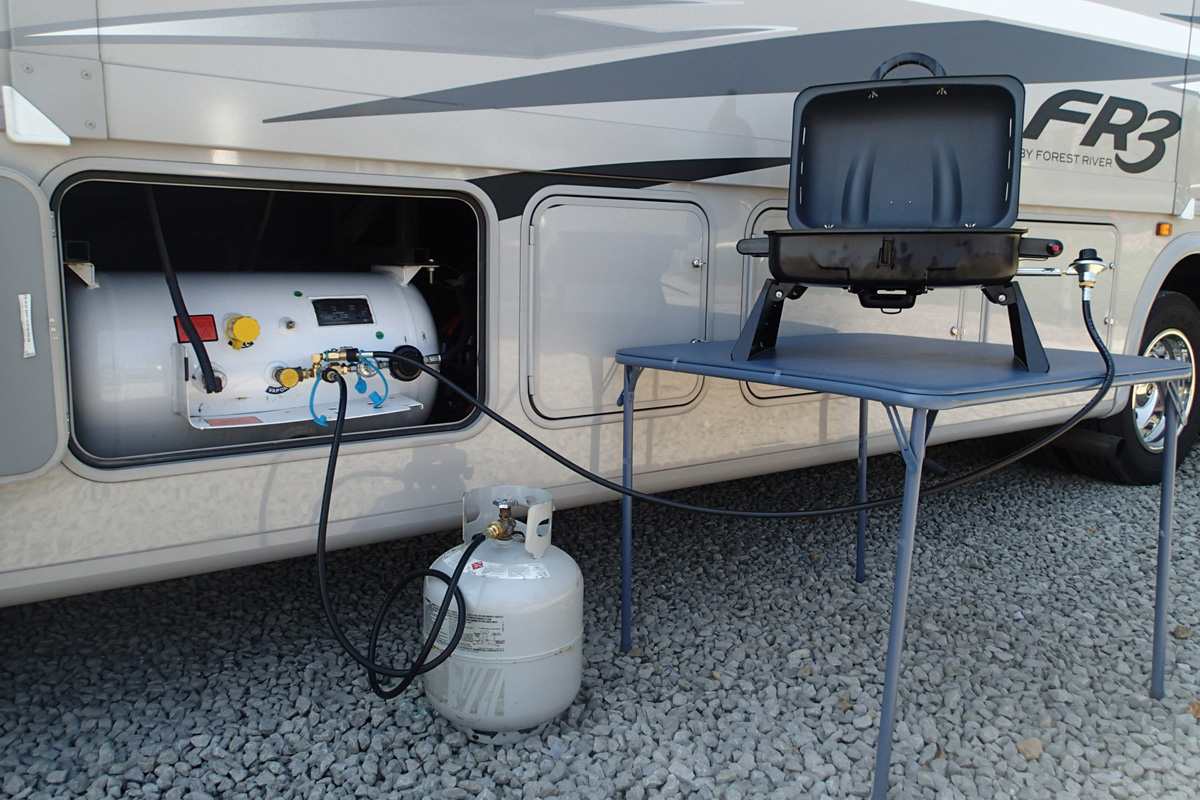

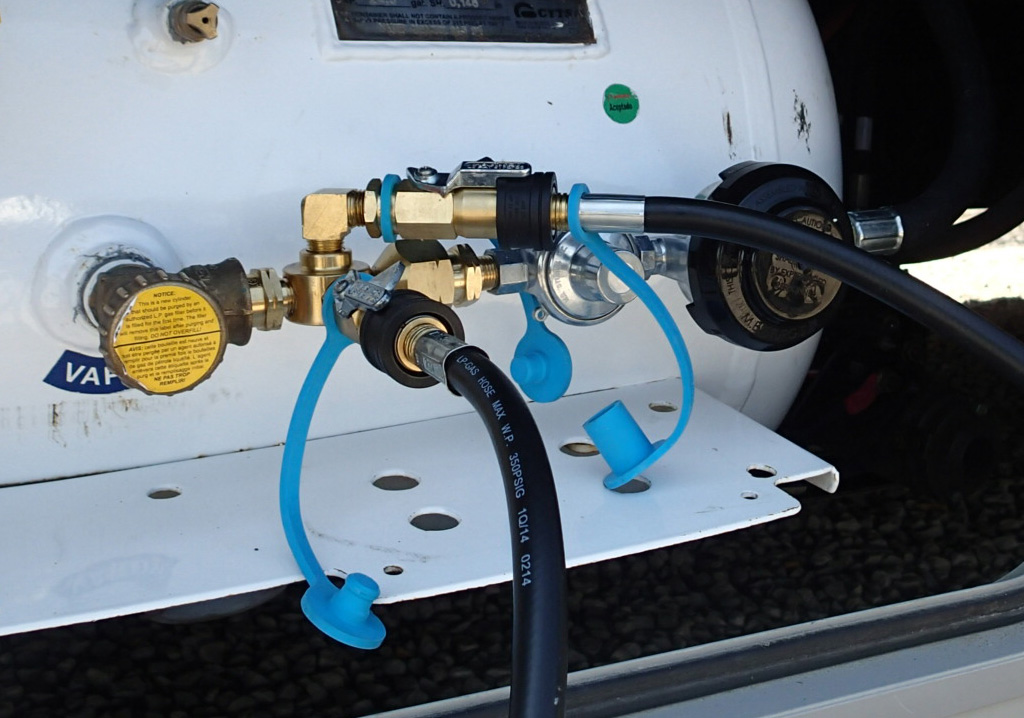

The Quick Disconnect Sturgi-Stay Kit Deluxe propane adapter kit is used to allow motor home owners to be able to connect their propane system to an auxiliary LP cylinder to avoid the need to move the motor coach when staying in one location for an extended period of time. The Quick Disconnect option allows easy connection to both the auxiliary tank and a highpressure propane appliance without the need for wrenches or leak testing. The Deluxe Kit option comes with a 6′ feed hose standard with the QD Sturgi-Stay Kit, a 10′ quick disconnect bulk adapter hose used to power a small portable appliance and a Quick Disconnect Sturgi-Stay Fitting.

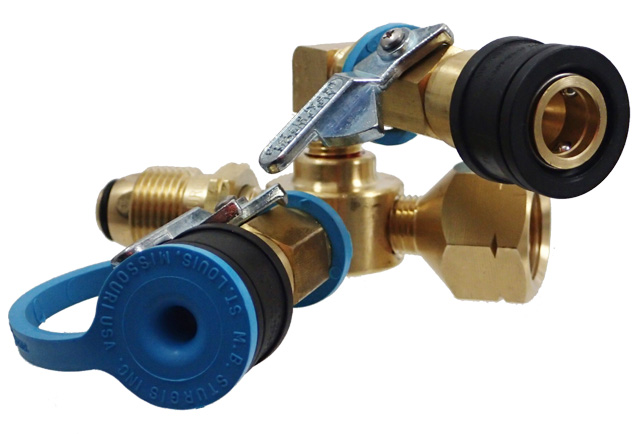

FITTING DESCRIPTION – POL Tank Connector X MOdel 250 Quick Disconnect X Model 250 Quick Disconnect X Female POL Outlet.

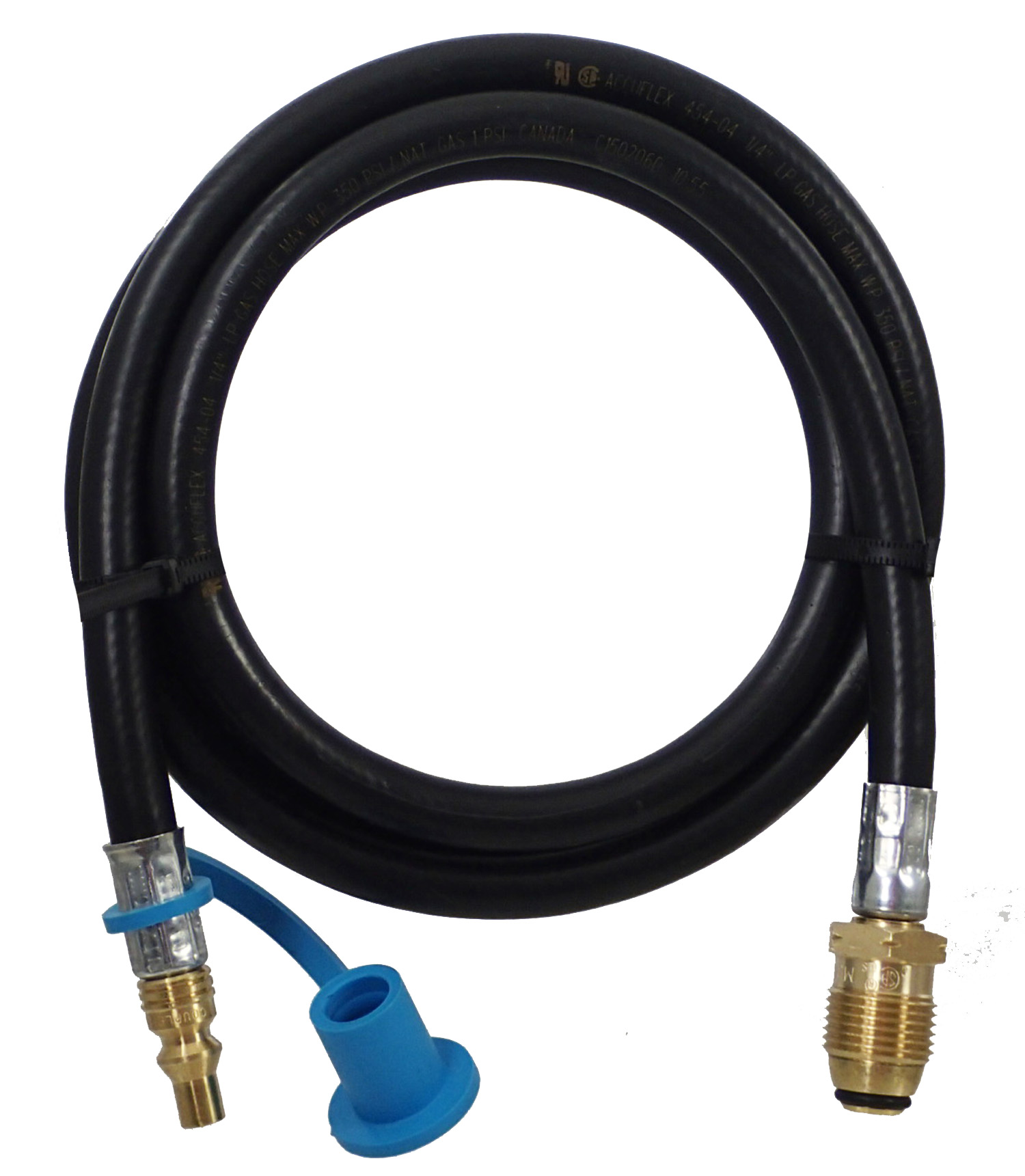

FEED HOSE DESCRIPTION – 1/4″ ID Thermo Plastic Hose Assembly including a POL Tank Connection with excess flow and a 1/4″ Male Model 250 Plug. 72″ Overall Length (Can be custom made to any length) MB Stugis P/N 100739-72.

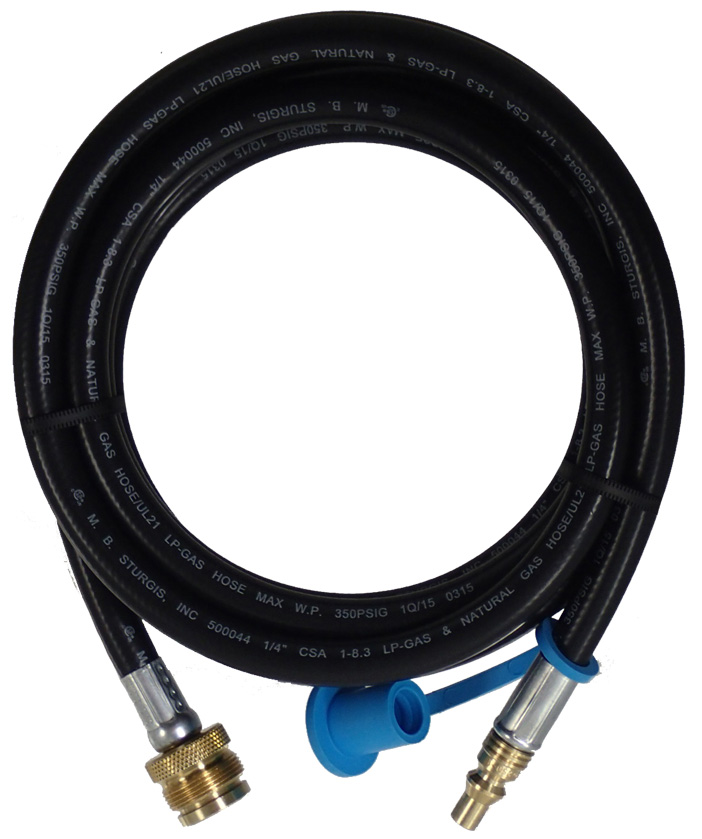

APPLIANCE ADAPTER HOSE DESCRIPTION – 1/4″ ID Thermo Plastic CGA Swivel Connection Hose Assembly with a #600 Male Swivel X Male Model 250 Quick Disconnect Plug. 120″ Overall Length (Can be custom made to any length). MB Sturgis P/N 100476-120.
COMPATIBLE MB STURGIS HOSE ASSEMBLIES – MB Sturgis Part Number 100395.
MAX PRESSURE RATING – 250 PSIG TEMPERATURE RANGE – -40°F to 350°F (-40°C to 177°C)
CERTIFICATION – Each component falls under a specific UL and/or CSA LP gas standard. Used for LP gas only.
