1″ Quick Connect Natural Gas Connector Kit
LP & Natural Gas Hose used for connecting very high BTU output outdoor cooking appliances, construction heaters, and standby generators to a permanent gas supply via quick disconnect.
*Standard Hose Length is 10 Feet

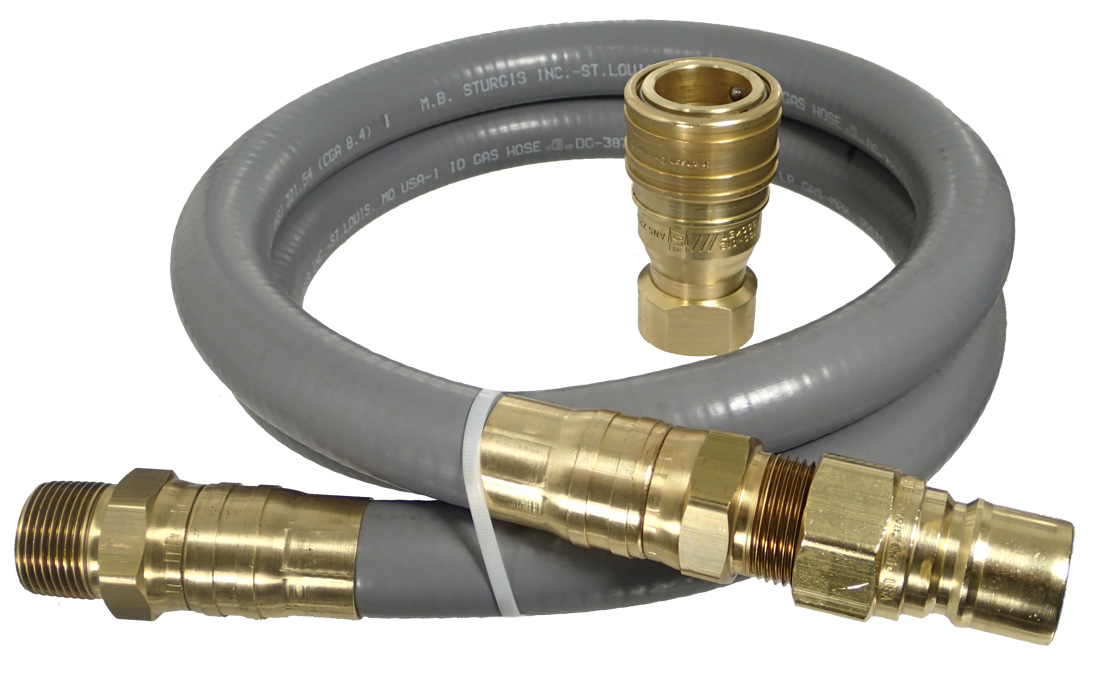

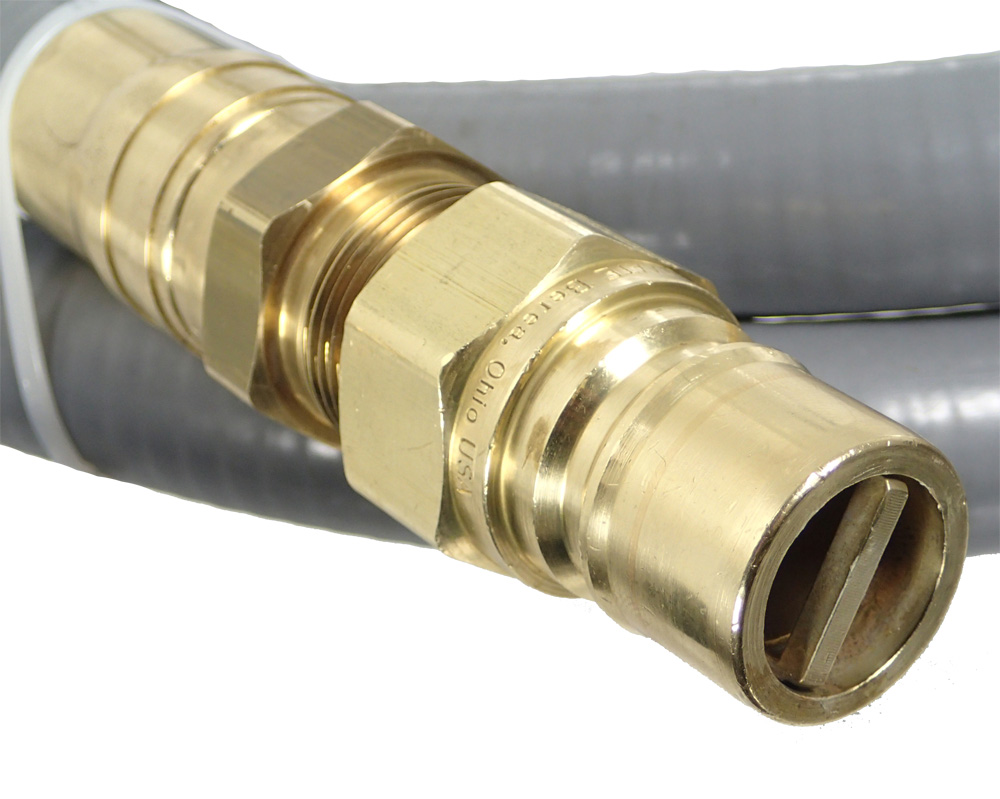

HOSE DESCRIPTION – 1″ ID Stripwound Hose Assembly with a 1″ Male QD Plug X 1″ Male Pipe Thread Swivel. 10′ Overall Length (Can be custom made to any length).

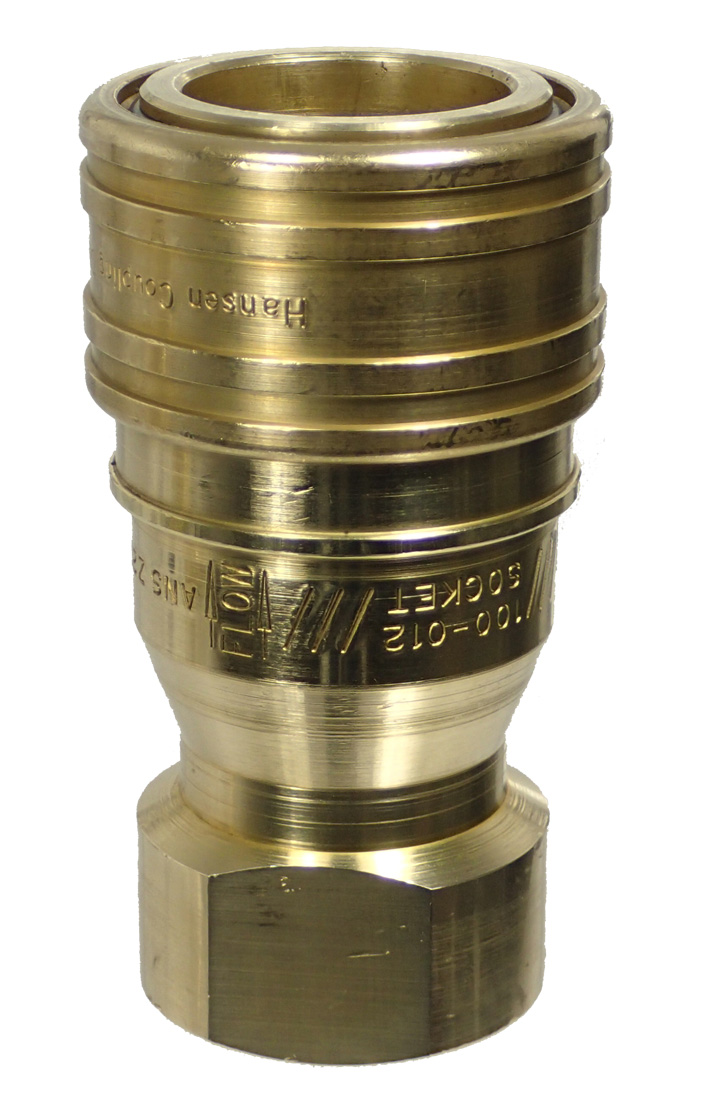

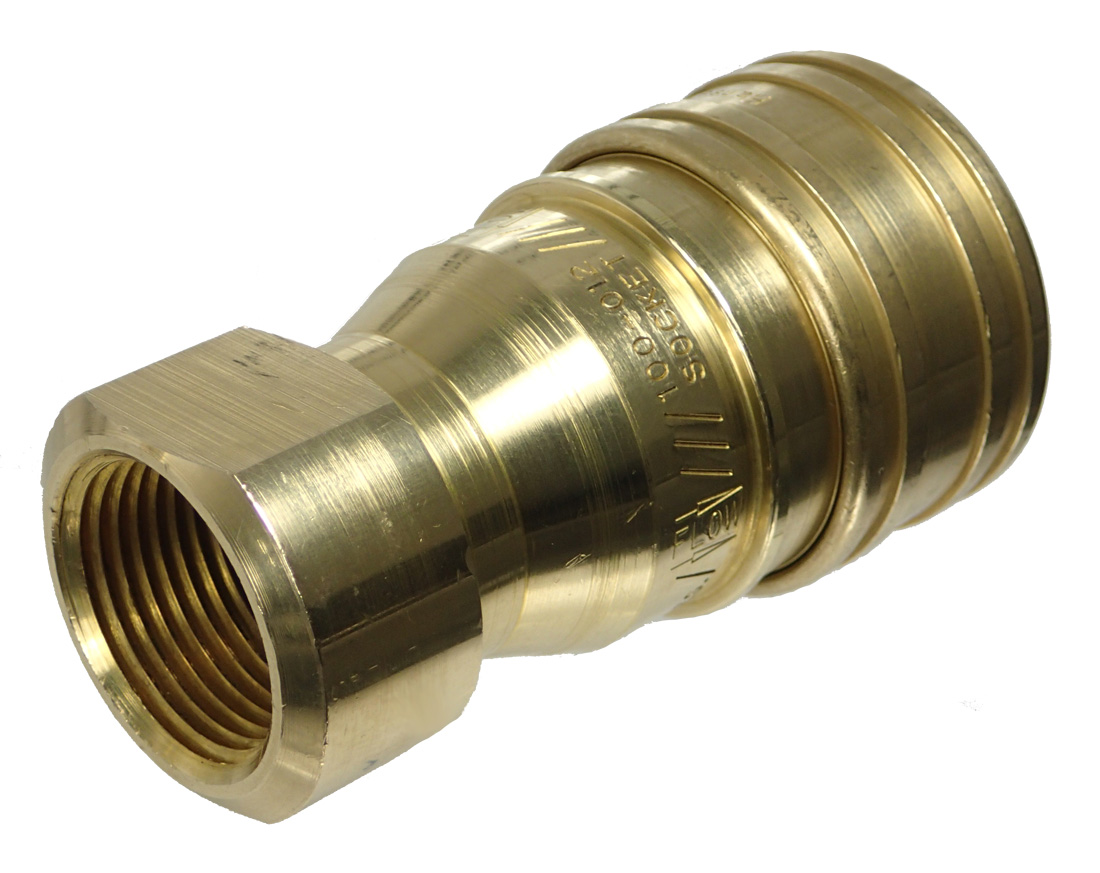

QUICK DISCONNECT – Model CSN-1000 1″ Quick Disconnect X 1″ Female NPT
MAX. FLOW CAPACITY – 471,000 BTU P/HR @ 1/2 PSIG with a 1″ W.C. Pressure Drop
TEMPERATURE RANGE – -40ºF to 200ºF (-40ºC to 93ºC)
CERTIFICATION – Quick Disconnect (ANSI Z21.41) / Hose Assembly (ANSI Z21.54) Used for Natural & LP Gas
